Parts + Accessories
Tramont offers a complete selection of parts and accessories for all of our products. If you don't see the part you need, have questions or need assistance, contact us at 414-967-8800, or email the Sales and Service Team.
System 2000PLUS™ ECM
120VAC Single pump
SN: 216000
Option: 1999
System 2000PLUS™ ECM
120VAC Duplex pump
SN: 216010
12 VDC System 2000PLUS™ ECM
SN: 216020
Option: 1930
24 VDC System 2000PLUS ECM
SN: 216030
Option: 1935
Duplex double tap bushing
2" NPT X ½" X ½"
SN: 108310
Double tapped bushing
2" NPT X ½" X ½"
(1) 7" dip tube. Dip tube for reverse pump, ½" for fuel inlet
(1) 7" dip tube. Dip tube for reverse pump, ½" for fuel inlet
SN: 108311
2" x 1-½" Bushing
for Sender
SN: 108240
2-Level Alarm
for up to 24" high tank
SN: 108261
2-Level Alarm
for up to 36" high tank
SN: 108264
2-Level Alarm
for up to 50" high tank
SN: 108267
3-Level Alarm
for up to 24" high tank
SN: 108262
3-Level Alarm
for up to 36" high tank
SN: 108265
3-Level Alarm
for up to 50" high tank
SN: 108268
4-Level Alarm
for up to 24" high tank
SN: 108263
4-Level Alarm
for up to 36" high tank
SN: 108266
4-Level Alarm
for up to 50" high tank
SN: 108269
Dual Fuel Level Alarm and Relay
SN: 215700
Option: 3182
Fuel-in-Basin Switch
Day Tank
SN: 216170
Option: 2930
Heavy-Duty TRE Float Switch
SN: 216160
Option: 3430
High Level Alarm and Relay
(also Top Mounted Basin Alarm)
SN: 215690
Option: 2935 & 1381
Level Modification Chip
SN: 216080
Option: 1912
Ameritech Duplex Level Modification Chip
SN: 216081
Ameritech Single Level Modification Chip
SN: 216082
Subbase Level Mod-Single
(Pump on 60%; Pump off 85%; Low Level 50%; High Fuel 90%, Critical Low 6%)
SN: 216083
Option: 1912-S
Subbase Level Mod-Duplex
(Pump A on 60%; Pump B on 50%, Pumps off 85%;Low Level 30%;High Fuel 90%, Critical Low 6%)
SN: 216084
Option: 1912-SD
Low Level Alarm and Relay
SN: 215680
Option: 3180
Remote Panel, One Alarm
(120VAC Standard)
SN: 215570
Option: 1958
Remote Panel, Two Alarm
(120VAC Standard)
SN: 215580
Option: 1959
Remote Panel, Three Alarm
(120VAC Standard)
SN: 215590
Option: 1960
Remote Panel, Four Alarm
(120VAC Standard)
SN: 215600
Option: 1961

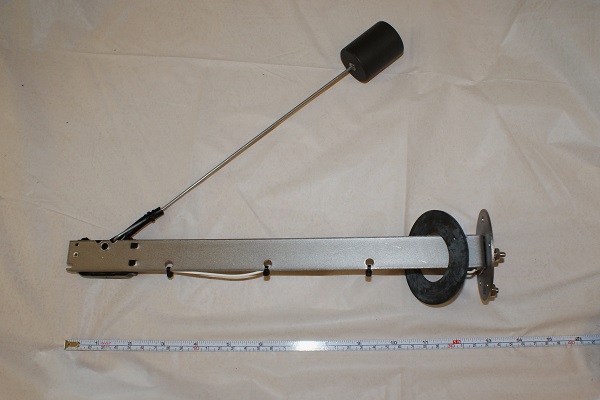

Standard TRS Float Sensor
SN: 216090
Sub Base Tank Sender Kit
(0-90 ohm & 2" NPT)
SN: 108250
Wall Mounted Audible Alarm
SN: 215610
Option: 3450
Weatherproof Alarm Horn
SN: 215620
Option: 3455
Ball Valve, ½" NPT
SN: 108110
Option: 2511
Ball Valve, ¾" NPT
SN: 108120
Option: 2512

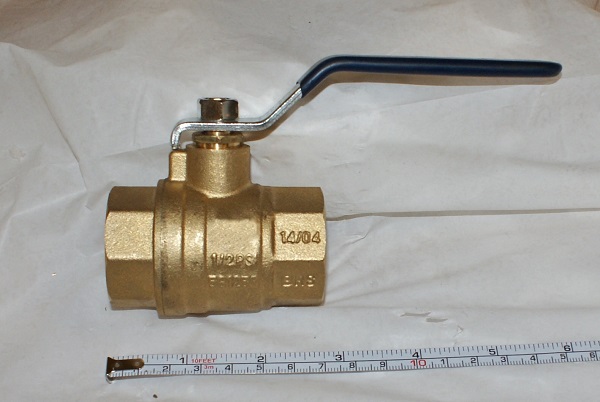

Ball Valve, 1" NPT
SN: 108130
Option: 2513
Check Valve, ⅜" NPT
SN: 108140
Option: 2600
Check Valve, ½" NPT
SN: 108150
Option: 2610
Check Valve, ¾" NPT
SN: 108160
Option: 2620
Check Valve, 1" NPT
SN: 108170
Option: 2630
¾" NPT Fusable Link Valve
(closes at 165°F)
SN: 108180
Option: 2635
1" NPT Fusable Link Valve
(closes at 165°F)
SN: 108190
Option: 2636
33-240 Ohm Float Sender
with Gasket, 2" X 2" NPT Double Tap bushing with screws - Not weatherproof. When mounting of genset is
included pull wires for 33-240 Ohm sender to genset control panel, customer to terminate. Tank requires
additional 2" NPT for sender. Sender is in addition to standard tank fuel level gauge
SN: 108258
Option: 3665
Solenoid Valve
, 120 VAC, ½" NPT, N. C., 4GPM
SN: 214690
Option: 2648
Solenoid Valve
120 VAC, ¾" NPT (Normally Closed) (10gpm)
SN: 214730
Option: 2652
Solenoid Valve
DC System, ¾" NPT (Normally Closed) (10gpm)
SN: 214740
Option: 2711
Solenoid Valve
DC System, ½" NPT, N.C., 4GPM max (specify 12 or 24VDC)
SN: 214770
Option: 2710
Solenoid Valve
DC System, 1" NPT, N.C., 23GPM (specify 12 or 24VDC)
SN: 214790
Option: 2712
Solenoid Valve
120 VAC, 1" NPT (Normally Closed)
SN: 214830
Option: 2653
Solenoid Valve
Manual Override, 120 VAC, 1" NPT (Normally Closed)
SN: 214870
Option: 2657
Solenoid Valve
Manual Override with Lever, 120 VAC, 1" NPT (Normally Closed)
SN: 214871
Option: 2658
Solenoid Valve
120 VAC, 2" NPT (Normally Open)
SN: 214900
Option: 2660
Solenoid Valve
DC System, 2" NPT (N. O.) 85GPM max
SN: 214910
Option: 2661
Solenoid Valve
Manual Override, 120 VAC, ½" NPT (Normally Closed)
SN: 214920
Option: 2655
Solenoid Valve
Manual Override, 120 VAC, ¾" NPT (Normally Closed)
SN: 214950
Option: 2656
Solenoid Valve
120 VAC, ⅜" NPT (Normally Closed)
SN: 214990
Option: 2648
Critical High, Emergency Shutdown
Includes critical high switch and yellow plug in relay
SN: 216190
Option: 3250
Dual Fuel Level Switch
installs into 2" NPT (specify levels and tank height)
SN: 216200
Option: 3177
Low Fuel Level Switch
(specify level, tank height and size NPT - 1" NPT minimum)
SN: 216210
Option: 3178
High Fuel Level or Rupture Basin Alarm Switch
(specify level, tank height and size NPT - 1" NPT)
SN: 216220
Side - Mounted Leak Detection Float Switch
Sub Base
SN: 216230
Option: 2830
Float Switch
Motor Control, 2 - Station (specify tank height, installs into 2" NPT)
SN: 216240
Float Switch Only, Single Level
SN: 216250
1 1/4" NPT Mushroom Cap
with Screen (Standard Atmospheric vent)
SN: 216280
Option: 2250
2" NPT Mushroom Cap
with Screen (for Atmospheric Venting)
SN: 216290
Option: 2249
3" NPT Mushroom Cap
with Screen (for Atmospheric Venting)
SN: 216300
Option: 2253
4" NPT Mushroom Cap
with Screen (for Atmospheric Venting)
SN: 216310
Option: 2254
2" NPT Emergency Pressure Relief Vent
SN: 216320
Option: 2262
3" NPT Emergency Pressure Relief Vent
SN: 216330
Option: 2263
4" NPT Emergency Pressure Relief Vent
SN: 216340
Option: 2264
5" NPT Emergency Pressure Relief Vent
SN: 216350
Option: 2265
6" NPT Emergency Pressure Relief Vent
SN: 216360
Option: 2266
8" NPT Emergency Pressure Relief Vent
244M-0600AV
SN: 216361
Option: 2268
1.25" Top Mounted Vent Whistle
SN: 216370
Option: 2259
Battery Rack
6-½" x 13-½"
SN: 215270
Battery Rack
9-½" x 29"
SN: 215280
Battery Rack
7-½" x 14"
SN: 215290
Battery Rack
9-½" x 14"
SN: 215300
Battery Rack
12" x 21-½", (One 4D or 8D)
SN: 215310
Battery Rack
12" x 42-½", (Two 4D or 8D End-to-End)
SN: 215320
Option: 6025
Battery Rack
23" x 21-½", (Two 4D or 8D, Side-by-Side)
SN: 215330
Option: 6030
Battery Box
12"W x 23" L x 12"H, (One 4D or 8D)
SN: 215340
Battery Box
12"W x 44" L x 12"
SN: 215350
Duplex Cover
Horizontal Pumps
SN: 215850
Option: 2240
Duplex Cover
Vertical Pumps
SN: 215840
Option: 2230
Inspection Plate Gasket
SN: 215770
Inspection Plate Kit
TRE Standard
SN: 215710
Inspection Plate Kit
TRX Standard
SN: 215720
Inspection Plate
TRS Retrofit
SN: 215750
Inspection Plate
TRX, 2" NPT Fill
SN: 215730
Solid Inspection Plate
SN: 215760
Poly TRS Cover
No ECM Opening
SN: 215790
Weatherproof Cover
for Single Pump/Motor, TRS Only
SN: 215800
Option: 2400
Weatherproof Cover
for Single Pump/Motor, TRE Only
SN: 215810
Option: 2405
Weatherproof Cover
single wide, duplex tall, (2 vertical pumps)
SN: 215820
Option: 2410
Weatherproof Cover
duplex wide, single tall, (2 horizontal pumps or 1 pump with starter)
SN: 215830
Option: 2420
Weatherproof Cover
duplex wide, duplex tall (vertical pumps and side by side pumps, or vertical pumps with starter)
SN: 215831
Cover
duplex, single wide, duplex tall (2 vertical pumps) indoor application
SN: 215840
Option: 2430
Cover
duplex wide, single tall, indoor application (2 horizontal pumps or pump with starter)
SN: 215850
Option: 2440
Cover
duplex wide, duplex tall, Indoor application (vertical and side by side pumps, or vertical pumps with
starter)
SN: 215851
2" NPT Lockable Manual Fill Cap
SN: 216270
TRX Manual Fill Cap
SN: 216260
Duplex Fuel Strainer, ¾" NPT
SN: 215530
Fuel Filter Coalescer, 1" NPT
SN: 215500
Option: 2225
Fuel Filter, 1-1/4" NPT
SN: 215490
Option: 2215
Fuel Filter, ¾" NPT
SN: 215480
Option: 2200
Fuel Strainer, 1" NPT
SN: 215520
Option: 2231
Fuel Strainer, ¾" NPT
SN: 215510
Option: 2230
In-Line Flame Arrestor
1-1/4" NPT
SN: 215540
Option: 2260
Pressure Gauge
1/4"NPT bottom mount, 0-30PSI, JB-GF
SN: 215550
Option: 2325
Vacuum Gauge
1/4"NPT bottom mount, 0-3"HG (mercury)
SN: 215560
Option: 2326
Fuel Level Gauge
Standard TRE/TRX (Specify Height)
SN: 215890
Option: 3661
Parts Kit
for TRE/TRX Level Gauge
SN: 215900
Fuel Level Gauge
Remote Reading, for Day Tank
SN: 215910
Fuel Level Gauge
Magnetic Type - Rochester, includes 1.5" adaptor standard
SN: 215920
Option: 3360
Fuel Level Gauge
Magnetic Type - Rochester, installs into 1.5" or 2" adaptor (adaptor not included)
SN: 215921
2" Adapter
for Magnetic - Type Fuel Level Gauge
SN: 215930
1.5" Adapter
for Magnetic - Type Fuel Level Gauge
SN: 215931
Dial Cap
for Magnetic - Type Fuel Level Gauge
SN: 215940

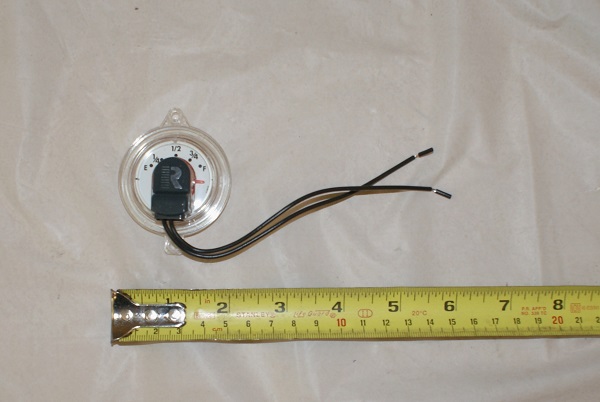

Twin Site Sender
0 - 90 Ohm
SN: 215950
Option: 3662
4-20MA sender
with screw terminal connectors for indoor use only
SN: 215956
4-20MA sender
with weatherproof Packard Series 150 Metri-pack connector
SN: 215957
Twin Site Sender
240 - 30 Ohm
SN: 215960
Option: 3665
Touch-Up Spray Paint Can
SN: 214380
1" NPT Pipe Plug
SN: 108020
Option: 2342
1-1/4" NPT Pipe Plug
SN: 108030
Option: 2343
½" NPT Pipe Plug
SN: 108010
Option: 2341
2" NPT Pipe Plug
SN: 108040
Option: 2344
3" NPT Pipe Plug
SN: 108050
Option: 2346
¾" NPT Pipe Plug
SN: 108015
Option: 2339
⅜" NPT Pipe Plug
SN: 108000
Option: 2340
4" NPT Pipe Plug
SN: 108060
Option: 2347
5" NPT Pipe Plug
SN: 108070
Option: 2348
6" NPT Pipe Plug
SN: 108080
Option: 2349
Supply Dip Tube
to be removable; 1" dip tube with 2"NPT
SN: 109090
Option: 2393
Side-Mount Reverse Pump Dip Tube
SN: 108260
1/3 HP
12 VDC, TENV Motor, C Face
SN: 214010
Option: 1300
1/3 HP
24-28 VDC Motor, C Face
SN: 214020
Option: 1310
1/3 HP
115/208-230 Vac, 1 Phase, 60 Hz ODP Motor, Spider Mount
SN: 214040
Option: 1335
1/3 HP
115/208 Vac, 1 Phase, 60 HZ TEFC Motor, C Face
SN: 214050
Option: 1340
1/3 Hp
115/208/230 Vac, 1 Phase, 60HZ, Expl. Proof Motor, C Face
SN: 214060
Option: 1350
1/3 HP
110/220 Vac, 1 Phase, 50 HZ TEFC Motor, C Face
SN: 214070
Option: 1360
1/3HP
115VAC, 1 Phase 60HZ ODP Motor, Carbonator Mount (Standard TRS/TRE Motor)
SN: 214080
Option: 1370
1/3 HP
208-230/460 VAC, 3 Phase, 50/60 HZ ODP Motor, Face
SN: 214090
Option: 1400
1/3 HP
208-230/460 VAC, 3 Phase, 50/60 HZ, TEFC Motor, C Face
SN: 214100
Option: 1420
1/3 HP
115 VAC, 3 Phase, 50/60 HZ, Expl. Proof Motor, C Face
SN: 214110
Option: 1430
½ HP
12 VDC TENV Motor, C Face
SN: 214120
Option: 1500
½ HP
24 VDC TENV Motor, C Face
SN: 214130
Option: 1510
½HP
115/208-230 VAC, 1 Phase, 60 Hz ODP Motor, C Face
SN: 214140
Option: 1540
½HP
115/208-230 VAC, 1 Phase, 60 Hz ODP Motor, Carbonator Mount
SN: 214160
Option: 1544
½ HP
115/208-230 VAC, 1 Phase, 60 Hz TEFC Motor, C Face
SN: 214170
Option: 1550
½ HP
115/208-230 VAC, 1 Phase, 60 Hz Explosion Proof Motor, C Face
SN: 214180
Option: 1560
½ HP
110/220 VAC, 1 Phase, 50 Hz, ODP Motor, C Face
SN: 214190
Option: 1570
½ HP
110/220 VAC, 1 Phase, 50 Hz, TEFC Motor, C Face
SN: 214200
Option: 1580
½ HP
208-230/460 VAC, 3 Phase, 50/60 Hz, ODP Motor, C Face
SN: 214210
Option: 1610
½ HP
208-230/460 VAC, 3 Phase, 50/60 Hz, TEFC Motor, C Face
SN: 214220
Option: 1615
½ HP
208-230/460 VAC, 3 Phase, 50/60 Hz, Explosion-Proof Motor, C Face
SN: 214230
¾ HP
115/208-230 VAC, 1 Phase, 60 Hz ODP Motor, C Face
SN: 214240
Option: 1626
¾ HP
115/208-230 VAC, 1 Phase, 60 Hz, TEFC Motor, C Face
SN: 214250
Option: 1627
¾ HP
115/208-230 VAC, 1 Phase, 60 Hz, Expl. Proof Motor, C Face
SN: 214260
Option: 1628
¾ HP
110/220 VAC, 1 Phase, 50 Hz, TEFC Motor, C Face
SN: 214270
Option: 1628
¾ HP
208-230/480 VAC, 3 Phase, 50/60 Hz ODP Motor, C Face
SN: 214280
Option: 1632
¾ HP
208-230/460 VAC, 3 Phase, 50/60 Hz TEFC Motor, C Face
SN: 214290
Option: 1633
¾ HP
208-230/460 VAC, 3 Phase, 50/60 Hz Expl. Proof Motor, C Face
SN: 214300
Option: 1634
1 HP
115/208-230 VAC, 1 Phase, 60 Hz ODP Motor, C Face
SN: 214310
Option: 1640
1 HP
115/208-230 VAC, 1 Phase, 60 Hz TEFC Motor, C Face
SN: 214320
Option: 1641
1 HP
115/208-230 VAC, 1 Phase, 60 Hz Expl. Proof Motor, C Face
SN: 214330
Option: 1642
1 HP
110/220 VAC, 1 Phase, 50 Hz TEFC Motor, C Face
SN: 214340
Option: 1643
1 HP
208-230/460 VAC, 3 Phase, 50/60 Hz ODP Motor, C Face
SN: 214350
Option: 1646
1 HP
208-230/460 VAC, 3 Phase, 50/60 Hz TEFC Motor, C Face
SN: 214360
1 HP
208-230/460 VAC, 3 Phase, 50/60 Hz, Expl. Proof Motor, C Face
SN: 214370
2 GPM Pump
and 1/3 HP Motor, 120VAC
SN: 214490
Option: 1049
2 GPM Pump
Standard TRS/TRE, Carbonator Mount
SN: 214390
Option: 1002
White Drive Coupling
SN: 214485
2 GPM Pump
spider mount with adapter coupling
SN: 214395
Option: 1001
4 GPM Pump
1/3 HP Motor, 120VAC
SN: 214500
Option: 1050
4 GPM Pump
and ½ HP Motor, 120VAC
SN: 214501
Option: 1051
4 GPM Pump
SN: 214400
Option: 1003
5 GPM Prime Hand Pump
SN: 214450
Option: 1700
7 GPM Pump
and ½ HP Motor, 120VAC (for reverse pump option ¾HP motor recommended)
SN: 214520
Option: 1060
7 GPM Pump
with ¾HP motor, 115VAC, 1 phase, includes motor starter
SN: 214521
Option: 1061
7 GPM Pump
SN: 214410
Option: 1007
10 GPM
50 stroke Piston Type Hand Pump
SN: 214460
Option: 1710
10 GPM Pump
and ½ Motor, 120VAC
SN: 214530
Option: 1065
10 GPM Pump
and ¾ HP Motor, 120VAC, requires motor starter (not included)
SN: 214540
Option: 1070

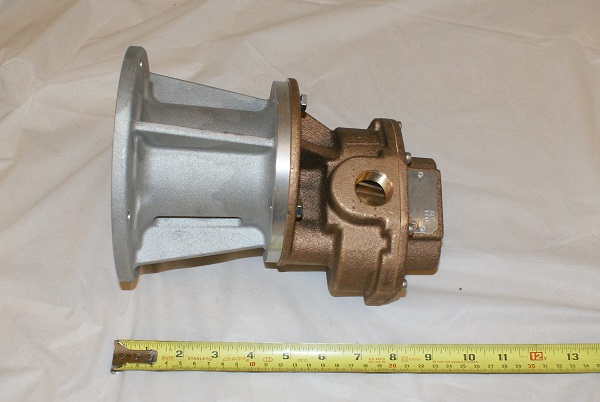

10 GPM Pump
C Face
SN: 214420
Option: 1009
10 GPM
50 stroke Piston Type Hand Pump
SN: 214470
Option: 1710
19 GPM Pump
and 1 HP Motor, 120VAC requires motor starter
SN: 214551
Option: 1076
19 GPM Pump
C Face
SN: 214430
Option: 1019
23 GPM Pump
C Face
SN: 214440
Option: 1022
Single Phase Motor Starter
up to 1HP, Indoor use only
SN: 214650
Option: 1620
Three Phase Motor Starter
up to 1HP, Indoor use only
SN: 214660
Option: 1625
Single Phase Magnetic Motor Starter
with HOA Switch
SN: 214670
Three Phase Magnetic Motor Starter
with HOA Switch
SN: 214680
Duplex Pump Set
(2) 2 GPM Pumps (214390) and (2) 1/3 HP Motors (214080) Mounted on Base Plate. Includes pressure relief
valves, inlet cutoff valves with vacuum gauges and discharge cutoff valves. Illuminated "Auto-Off-Manual"
switches supplied with NEMA 1 enclosure. All parts preplumbed and wired.
SN: 214570
Option: 1775
Duplex Remote Enclosure Kit
(includes steel base with steel cover for indoor use as standard)
SN: 214590
Option: 1751
Pump Running Meter
SN: 214480
Option: 1765
Pump Set
(2 GPM Pump (214390) and 1/3 HP Motor, 120VAC(214080) Mounted on Base Plate Includes pressure relief
valve, inlet cutoff valve with vacuum gauge and discharge cutoff valve. Illuminated "Auto-Off-Manual"
switch supplied with NEMA 1 enclosure.All parts preplumbed and wired.
SN: 214560
Option: 1770
Remote Enclosure Kit
(includes steel base with poly cover for indoor use as standard)
SN: 214580
Option: 1750
Step Down Transformer
(1/4 kVA, 240/480 VAC, 60 Hz) ECM Use ONLY
SN: 214600
Option: 1150
Step Down Transformer
(1 kVA, 240/480 VAC, 60 Hz.) Used to power ECM & 1/3 Motor
SN: 214610
Option: 1170
Step Down Transformer
(1 kVA, 120/208 VAC, 60 Hz.) Used to power ECM & 1/3 Motor
SN: 214620
Option: 1175
Step Down Transformer
(2 kVA, 240/480 VAC, 60 Hz.) Used to power ECM & 2 1/3 Motors)
SN: 214630
Option: 1180
Step Down Transformer
(1 kVA export version. 190/200/208/380/400/415/440 VAC, 60 Hz.)
SN: 214640
Option: 1190
Relay
Latching
SN: 215650

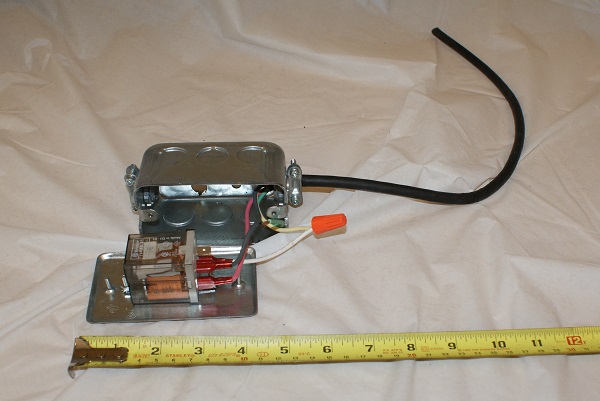

Relay
Pump Runing or Critical High
SN: 215630
Option: 3240
Relay
Reverse Pump, 20 amp relay @ 120V, for use with up to ½HP, 120V motor
SN: 215640
Add Duplex Pumping System
to TRS Includes duplex System 2000PLUS electronic control module, one 1/3 HP, 1 Phase, 60 HZ motor, one
2 GPM pump, pump running relay, two ⅜" check valves, remote base with poly cover for single
pump and motor.
SN: 215420
Add Reverse Pump
to TSS/TPS Includes remote base with poly cover for single pump and motor, 20 amp motor control relay,
1/3 HP, 115 VAC, 1 phase, 60 Hz motor, 2 GPM pump, critical high level switch, ⅜" NPT check
valve, ⅜" NPT dip tube for overflow to be installed in ¾" NPT fitting. Consult factory
to properly size dip tube.
SN: 215400
Add Reverse Pumping System
to TRS Includes remote base with poly cover for pump and motor, electrical box and 20 amp motor control
relay, 1/3 HP, 1 phase, 60 Hz motor, 4 GPM pump, critical high fuel level shutdown, ⅜" dip
tube, ⅜" check valve, inspection plate and gasket.
SN: 215412
Top Mounted Pump/Motor Float Switch
Includes bud box, Relay, Inspection plate & Gasket
SN: 216150
Option: 3187
Convert TR to TRS
Includes System 2000PLUS controller and mounting bracket, TRS float sensor, inspection plate and gasket.
Specify tank height.
SN: 215380
Convert TRE to Duplex TRS
Includes duplex System 2000PLUS electronic control mudule and mounting bracket, TRS float sensor, one
1/3 HP, 1 phase, 60 HZ motor, one 2 GPM pump, pump running relay, two ⅜" check valves, remote
base with poly cover for single pump and motor. Specify tank height.
SN: 215360
Convert TRE to TRS
Includes System 2000PLUS controller, TRS float sensor, inspection plate and gasket, plug for side -mounted
TRE float switch fitting. Specify tank height.
SN: 215430
Convert TSX/TPX to TSS/TPS
(with twin site) Includes System 2000PLUS controller, remote base with poly cover for single pump and
motor, 0-90 Ohm twin site sender (3662), magnetic fuel level gauge (3660) 1/3HP, 15 VAC, 1 phase,
60 Hz Motor, 2 GPM pump and critical high level switch. Tank requires 1.5" NPT for replacement gauge
with sender, 2" NPT for supplied 2" X ½" X ½" (with 7" dip tube) double tap bushing
for tank fill and overflow back] to main tank, 1 1/4" - 2" NPT for critical high switch (specify
size NPT). Specify tank height.
SN: 215390
5 Gal. Spill/Fill Containment
SN: 215440
Option: 2080
5 Gal. Spill/Fill Containment
Stainless Steel
SN: 215460
Option: 2081
7-½ Gal. Spill/Fill Containment
SN: 214451
Option: 2075
Remote 5 Gal. Spill/fill Containment
with Wall Mount Brackets
SN: 215450
Option: 2084
Remote 5 Gal. Spill/Fill Containment
Stainless Steel with Wall Mount Brackets
SN: 215470
2-½" Gallon Horizontal Surge Tank
SN: 215180
5 Gallon Horizontal Surge Tank
SN: 215190
8 Gallon Horizontal Surge Tank
SN: 215200
15 Gallon Horizontal Surge Tank
SN: 215210
18 Gallon Horizontal Surge Tank
SN: 215220
24 Gallon Horizontal Surge Tank
SN: 215230
40 Gallon Horizontal Surge Tank
SN: 215240
Surge Tank Feet, Set of Two
SN: 215250
